| Product | Stainless steel fittings to ASTM/ASME standards, seamless |
|---|---|
| Standaard | ASTM A 403/ASME B16.9 |
| Afmetingen |
1/2" S10S to 12" S80S other dimensions on request |
| Materialen |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Certificering | 3.1 acc. to EN 10204 |
| Type |

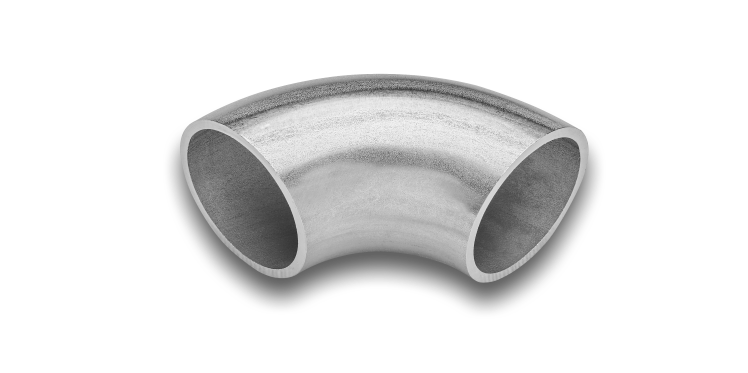

Elbows 45° Elbows 90° (LR/SR) Tees (equal, reducing) Concentric reducers Eccentric reducers Caps Stub ends |
| Oorsprong | EN and non-EU |
| Product | Stainless steel fittings to ASTM/ASME standards, welded |
|---|---|
| Standaard | ASTM A403/ASME B16.9 |
| Afmetingen |
12" S10S to 24" S40S other dimensions on request |
| Materialen |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Type |
Elbows 45° (LR) Elbows 90° (LR/SR) Tees (equal, reducing) Concentric reducers Eccentric reducers |
| Oorsprong | Non-EU |
| Product | Stainless steel fittings to ASTM standards |
|---|---|
| Standaard | ASTM A403 / ASME B16.9 |
| Afmetingen |
Welded: 1 / 2" to 24" S40 Seamless: 1 / 2" to 12" S160 |
| Leveringsvoorwaarden |
With bevelled ends |
| Materialen | 1.4301 / 1.4307 / 304 / 304L / 1.4401 / 1.4404 / 316 / 316L |
| Certificering | 3.1 acc. to EN 10204 |
| Type |
Elbows 45LR / 90LR / 90SR, Caps, Equal Tees, Reducing Tees Concentric Reducers, Eccentric Reducers |
| Oorsprong | European and non-EU origin |
| Product | Stainless steel socket-weld fittings 3000lbs |
|---|---|
| Standaard | ASTM A182 / ASME B16.5 |
| Afmetingen | 1/8" - 2" |
| Materialen |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grades (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L |
| Certificering | 3.1 acc. to EN 10204 |
| Type |
Couplings, Half couplings, Pipe nipples, Hexagon nipples, Elbows 45°, Elbows 90°, T pieces, Reducing T pieces, Unions, Caps, Bushings, Plugs, Sockolets, Weldolets, Threadolets |
| Oorsprong | EU |
| Afmetingen | Diameter: 1/8" – 4" |
|---|---|
| Materialen | 304/304L / 316/316L or 1.4408 (casted) |
| Certificering | 3.1 acc. to EN 10204 only for BSP produced from pipe or bar (not for casted) |
| Type |
Unions, Caps, Elbows, T pieces, (negative) Bushings, Nuts, Y-crossings, Plugs, Half sockets, Sockets, Reducing sockets, Welding nipples, Barrel nipples, Parallel nipples, Hexagon nipples, Hose nipples |
| Oorsprong | EU and non-EU |

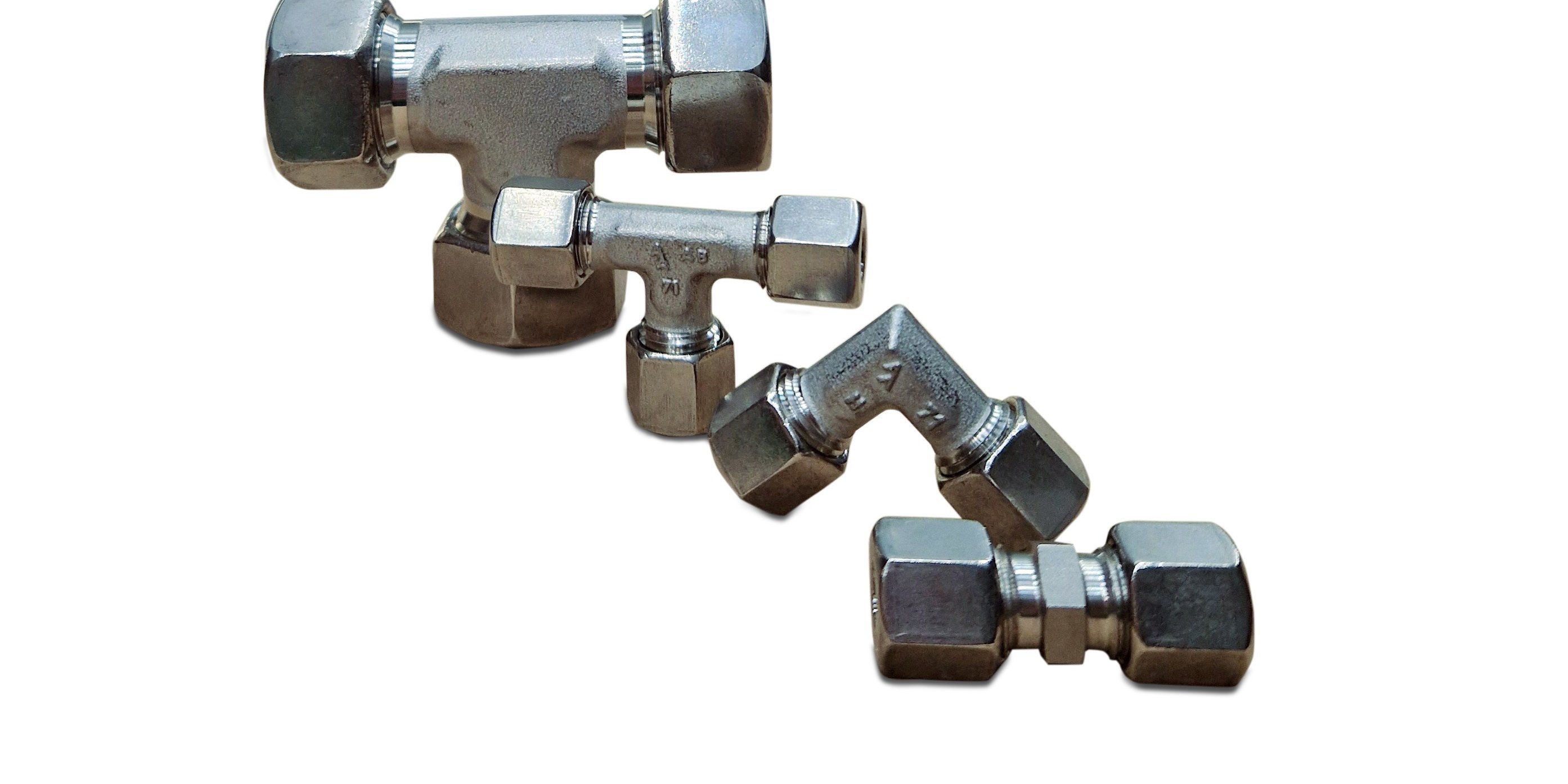

| Afmetingen |
Diameter: 6 - 28 mm (1/8" - 1") Wall thickness: 2 mm - 5 mm |
|---|---|
| Materialen | Material number 1.4571 |
| Type |
Elbows Couplings Elbow couplings T Couplings Strait couplings Cutting rings |
| Oorsprong | EU |
