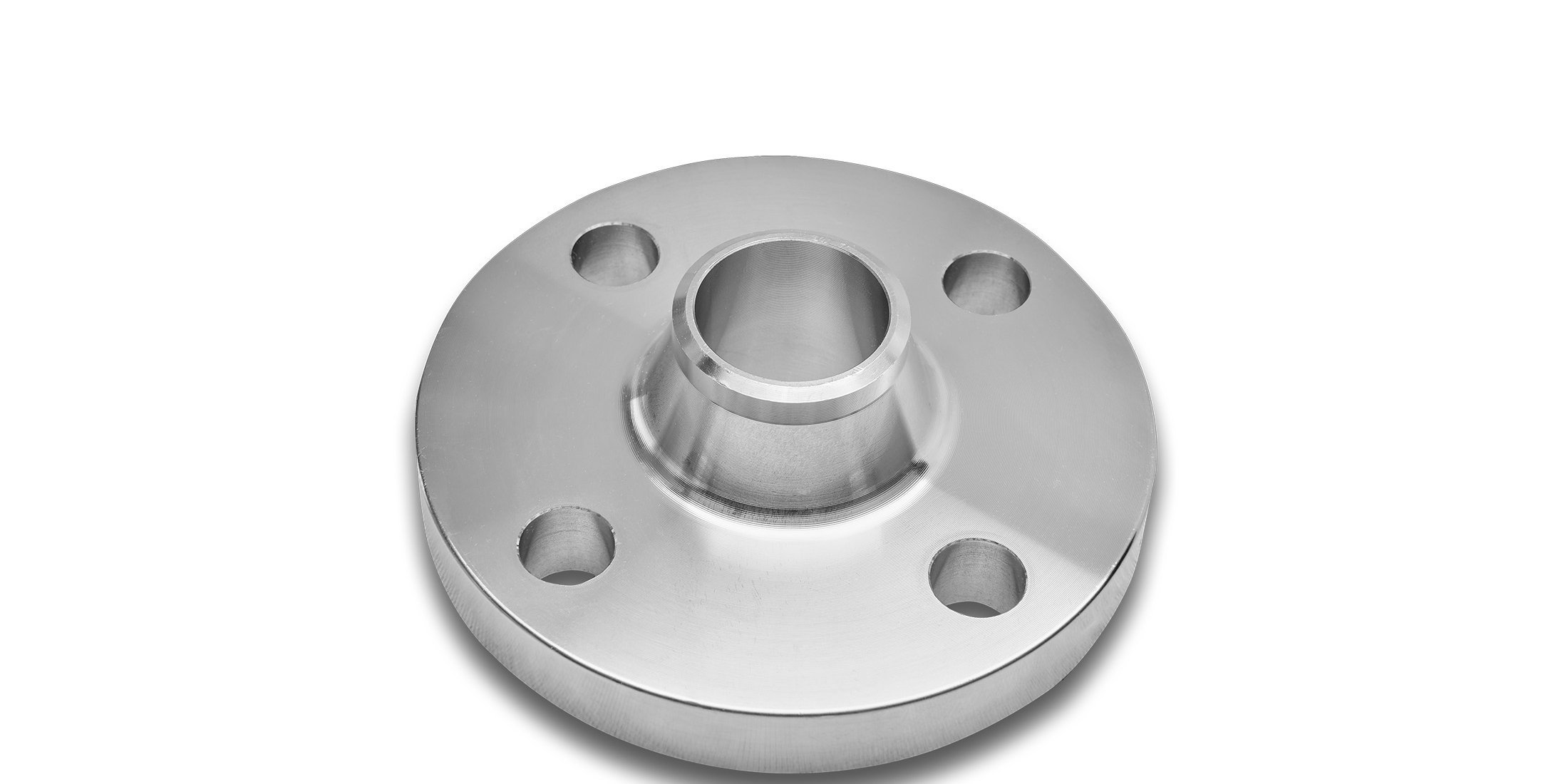

| Product | Roestvaststalen flenzen volgens to EN normen |
|---|---|
| Standaard | EN 1092-1 |
| Afmetingen | NW 10 (17.2 mm) – NW 800 (813 mm) |
| Leveringsvoorwaarden |
Class PN10 / 16 / 25 / 40 |
| Materialen |
Material number: 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Certificering | 3.1 acc. to EN 10204 |
| Type |
Type 1A Type 2A Type 5A Type 11B Type 13B |
| Oorsprong | Non-EU |

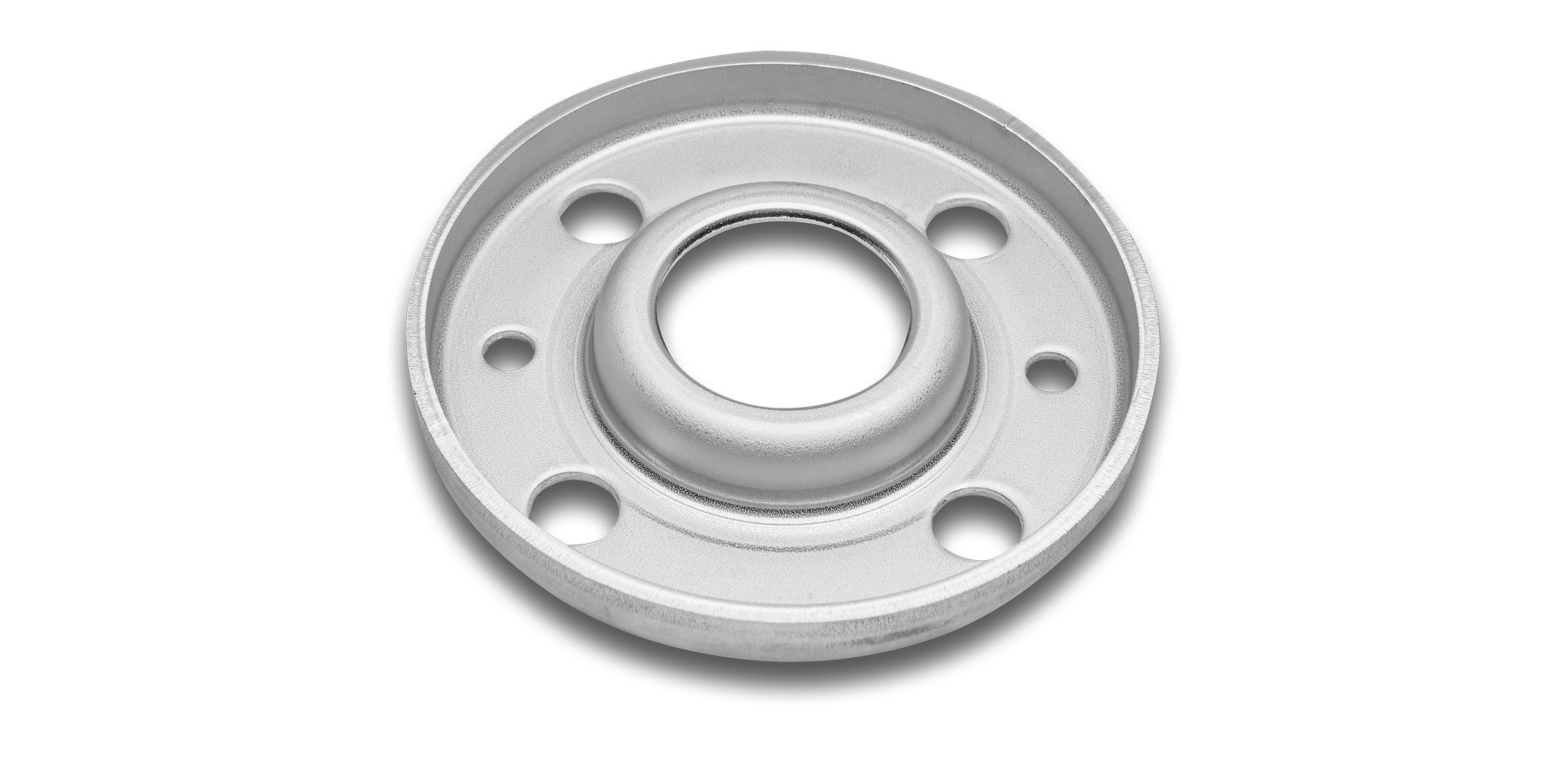

| Product | Roestvaststalen geperste flenzen volgens EN normen |
|---|---|
| Standaard | EN 1092-1 |
| Afmetingen | NW 15 (21.3 mm) – NW 300(323.9 mm) |
| Leveringsvoorwaarden |
Class PN10/16 |
| Materialen | 1.4301/1.4307 |
| Certificering | 3.1 acc. to EN 10204 |
| Type | Type 2 (slip-on) |
| Oorsprong | EU |

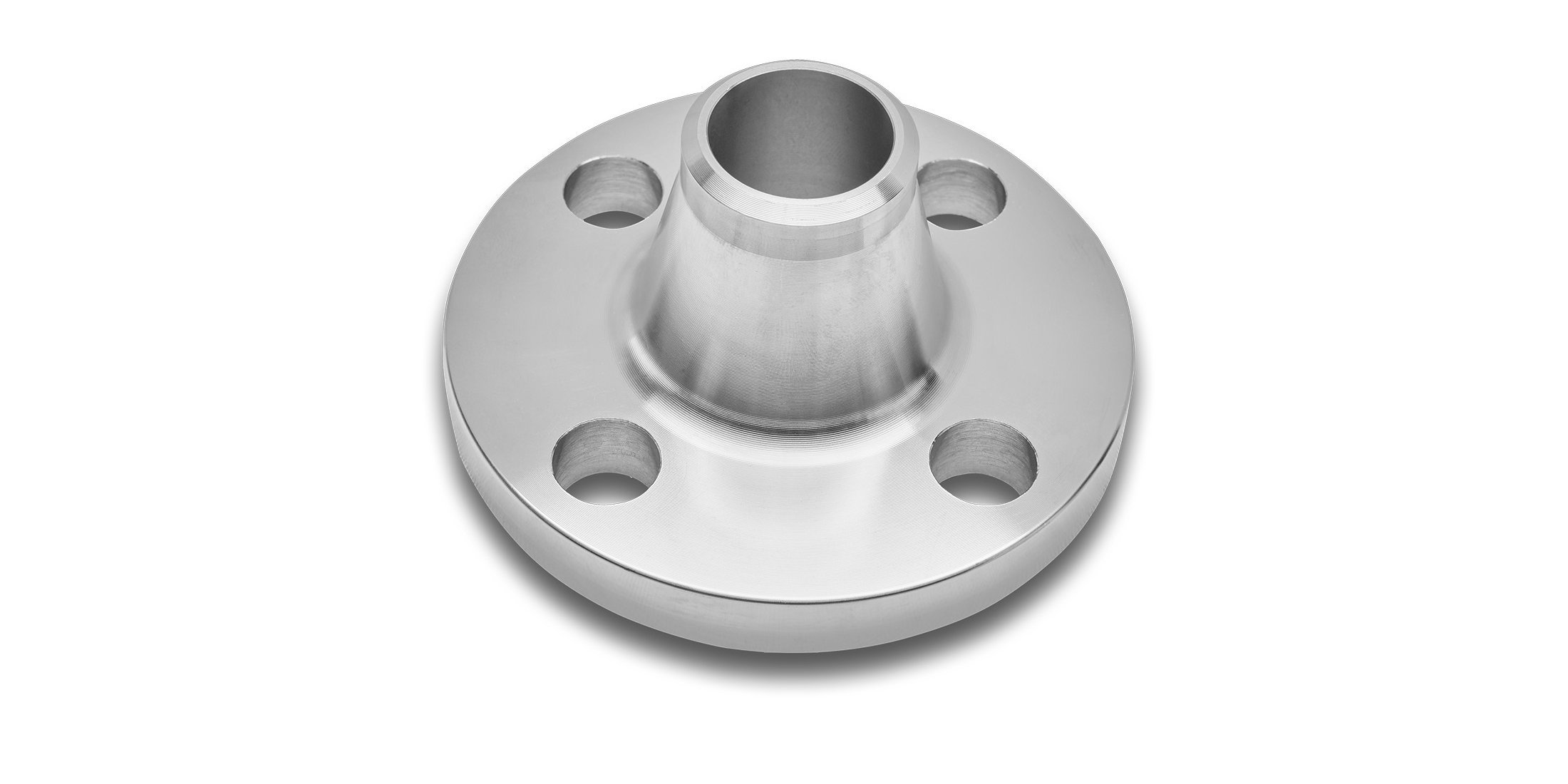

| Product | Roestvaststalen flenzen volgens EN normen met ASTM connectie |
|---|---|
| Standaard | EN 1092-1 |
| Afmetingen |
NW15 (21.3 mm / 1/2") – NW300 (323.9 mm / 12") Connection thickness 10s/40s (STD)/80s (XS) |
| Leveringsvoorwaarden |
Class PN10/16/25/40 |
| Materialen |
Material number: 1.4301/1.4307 1.4401 / 1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316 / 316L other materials on request |
| Certificering | 3.1 acc. to EN 10204 |
| Type | Type 11B (welding neck) |
| Oorsprong | Non-EU |
| Product | Aluminium flenzen volgens EN normen |
|---|---|
| Standaard | EN 1092-1 |
| Afmetingen | NW15 (21.3 mm) - NW300 (323.9 mm) |
| Leveringsvoorwaarden |
Plain and coated |
| Materialen | Aluminium |
| Type | Type 2 (slip-on) |
| Oorsprong | EU |

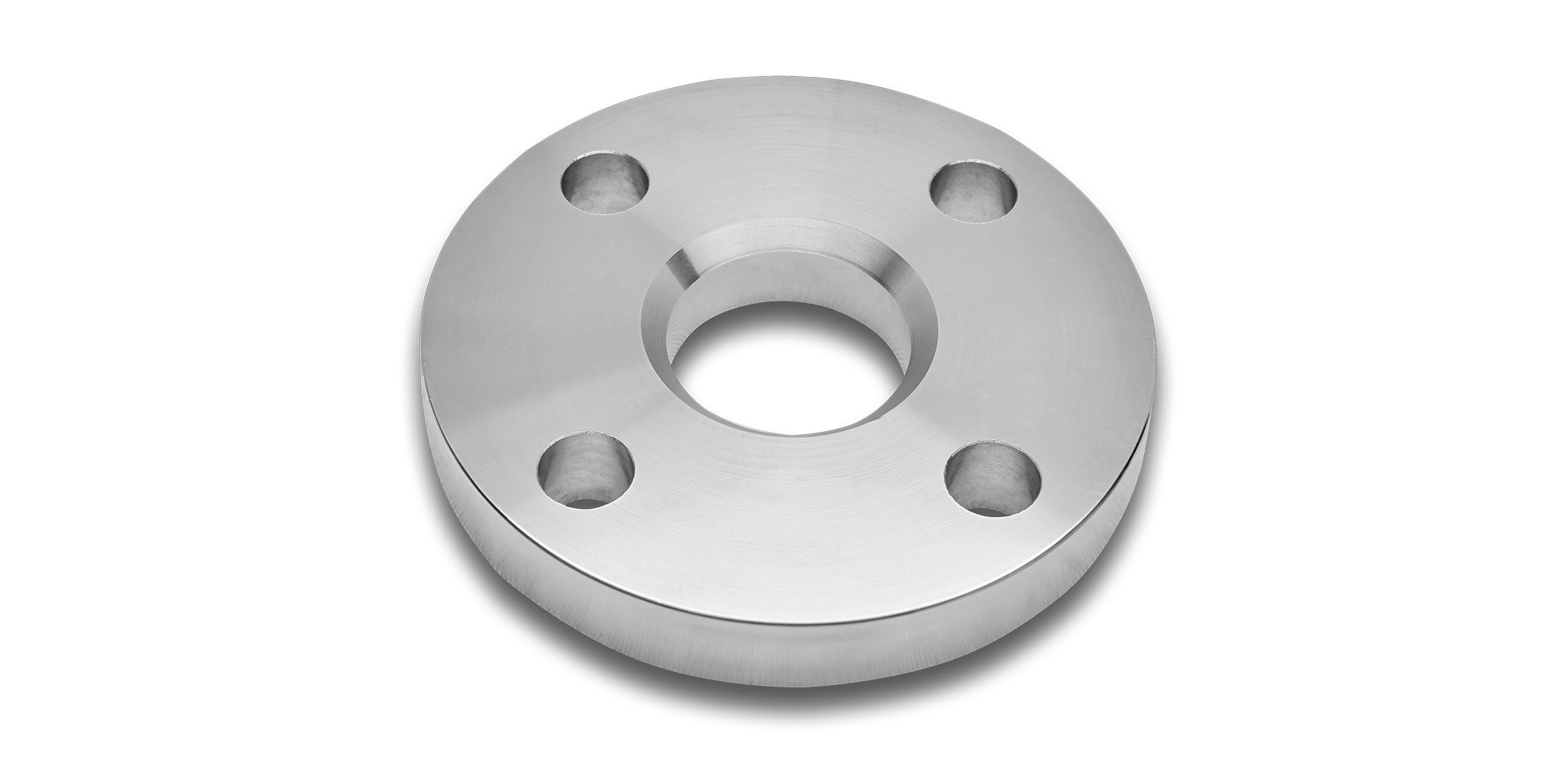

| Product | Roestvaststalen flenzen volgens ASTM/ASME normen |
|---|---|
| Standaard | ASTM A182 / ASME B 16.5 |
| Afmetingen |
Outside diameter: 1 / 2" – 24" Connection thickness: 10s, 40s (STD), 80s (XS), 160, XXS |
| Materialen |
Material number 1.4301/1.4307 1.4401/1.4404 Steel grade (ASTM/ASME/ANSI) Tp 304/304L Tp 316/316L other materials on request |
| Certificering | 3.1 acc. to EN 10204 |
| Type |
Blind Threaded Slip on Lap joint Socket weld Welding neck |
| Druk | 150 / 300 / 600 / 1500 lbs |
| Oorsprong | EU and non-EU |
